X26/24/X20
93 miles Triple Suspension Foldable E-bike
Please note:
1. Only sold in offline stores in the United States
2. US warehouse and after-sales maintenance center address: 2280 Valley Blvd, Pomona, CA 91768, US
3. Contact person for offline business in the United States:
Name: Ernie Huang
Phone: 215-992-2020
Email: ernie.huangtexas@gmail.com
Company:Qkey LLC (ENGWE California Branch)
Name: Mike Anzelde
Phone: 909-676-9079
Email: Anzelde2005@gmail.com
Company: Qkey LLC (ENGWE California Branch)
Specs
Motor | 1200w(peak) High-Speed Brushless Motor |
Material | 6061 Aluminum Alloy |
Tires | 26 x 4.0 Fat Tires |
Torque | 70 N.m |
Batteries | 48V10Ah Lithium-Ion Battery*1 |
48V19.2Ah Lithium-Ion Battery*1 | |
Mileage | 62 Miles (ECO Mode) |
Speed | 0-31MPH |
Charging Time | About 8h |
Maximum Climbing Degree | 30° |
Brake | Hydraulic Disc Brakes |
Hub & Power | Integrated Hub Motor |
Transmission System | Shimano 8 Gears |
29.2Ah Battery Version Bike Weight | 43.6 kg (96 lbs) |
29.2Ah Battery Version Gross Weight | 52.47 kg (115 lbs) |
Maximum Load | 150 kg (330 lbs) |
Motor | High-Speed Brushless Motor |
Material | 6061 Aluminum Alloy |
Tires | 24 x 4.0 Fat Tires |
Torque | 70 N.m |
Batteries | 48V10Ah Lithium-Ion Battery*1 |
48V19.2Ah Lithium-Ion Battery*1 | |
Mileage | 150 km (ECO Mode) |
Charging Time | About 8h |
Maximum Climbing Degree | 30° |
Brake | Hydraulic Disc Brakes |
Hub & Power | Hub Motor |
Transmission System | Shimano 8 Gears |
Bike Weight | 41.9 kg (92 lbs) |
Gross Weight | 49.32 kg (108 lbs) |
Maximum Load | 150 kg (330 lbs) |
Motor | High-Speed Brushless Motor |
Material | 6061 Aluminum Alloy |
Tires | 20 x 4.0 Fat Tires |
Torque | 65 N.m |
Batteries | 48V14.4Ah Lithium-Ion Battery *1 |
48V7.8Ah Lithium-Ion Batter*1 | |
Mileage | 150 km (ECO Mode) |
Charging Time | About 7h |
Maximum Climbing Degree | 30° |
Brake | Hydraulic Disc Brakes |
Hub & Power | Hub Motor |
Transmission System | Shimano 8 Gears |
Bike Weight | 37.2 kg(82lbs) |
Gross Weight | 46.32 kg(102.11lbs) |
Maximum Load | 150 kg(330 lbs ) |
Size
Rider Height | 5.5 (ft) -6.5 (ft) |
Payload Capacity | 150 kg (330lbs) |
Package Dimensions (LWH) | 158*35*87 cm |

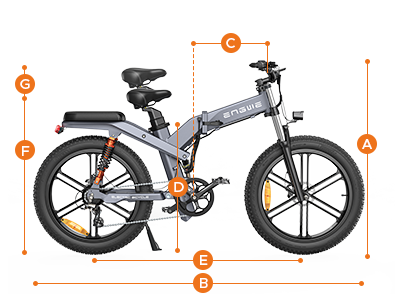

A--Height | 114.7 cm |
B--Total Length | 196.1 cm |
C--Reach | 41.1 cm |
D--Standover Height | 76.1 cm |
E--Wheelbase | 122.1 cm |
F--Minimum Saddle Height | 93.8 cm |
G--Maximum Saddle Height | 121.5 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.

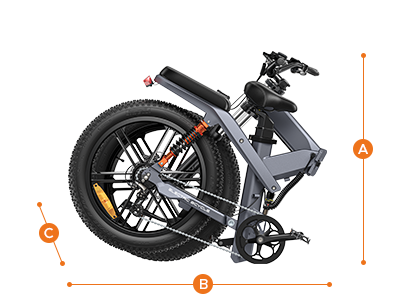

Folded Size | 110*72*120 cm |

A--Height | 120 cm |
B--Length | 110 cm |
C--Width | 72 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Rider Height | 5.6 (ft) -6.4 (ft) |
Payload Capacity | 150 kg(330lbs) |
Package Dimensions (LWH) | 162*32*79 cm |

A--Height | 108 cm |
B--Total Length | 187.4 cm |
C--Reach | 41.2 cm |
D--Standover Height | 73.6 cm |
E--Wheelbase | 118.4 cm |
F--Minimum Saddle Height | 90.2 cm |
G--Maximum Saddle Height | 121.5 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded Size | 106*74*107 cm |

A--Height | 107 cm |
B--Length | 106 cm |
C--Width | 74 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Rider Height | 5.4 (ft) -6.2 (ft) |
Payload Capacity | 150 kg (330lbs) |
Package Dimensions (LWH) | 152*32*73 cm |

A -- Height | 113.5 cm |
B -- Total Length | 170.5 cm |
C -- Reach | 43.7 cm |
D -- Standover Height | 63.3 cm |
E -- Wheelbase | 112.5 cm |
F -- Minimum Saddle Height | 84.5 cm |
G -- Maximum Saddle Height | 106 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded Size | 103*68*79 cm |

A--Height | 79 cm |
B--Length | 103 cm |
C--Width | 68 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
X26 E-bike | *1 |
Batteries | 48V10Ah Lithium-Ion Battery *1 |
48V19.2Ah Lithium-Ion Battery *1 | |
Battery Charger | *1 |
Assembly Tools | *1 |
Pedals | *2 |
Handle Bars Shipped Installed On Bike | *1 |
User Manual | *1 |
Display Manual | *1 |
Tool Kit | *1 |
Please note: The product you receive is based on the option you selected to order.
X24 E-bike | *1 |
Batteries | 48V10Ah Lithium-Ion Battery *1 |
48V19.2Ah Lithium-Ion Battery *1 | |
Battery Charger | *1 |
Assembly Tools | *1 |
Pedals | *2 |
Handle Bars Shipped Installed On Bike | *1 |
User Manual | *1 |
Display Manual | *1 |
Tool Kit | *1 |
Please note: The product you receive is based on the option you selected to order.
X20 E-bike | *1 |
Batteries | 48V7.8Ah Lithium-Ion Battery *1 |
48V14.4Ah Lithium-Ion Battery *1 | |
Battery Charger | *1 |
Assembly Tools | *1 |
Pedals | *2 |
Handle Bars Shipped Installed On Bike | *1 |
User Manual | *1 |
Display Manual | *1 |
Tool Kit | *1 |
Please note: The product you receive is based on the option you selected to order.
FAQ
Q1: Shipping information:
In stock: Once order confirmation has been completed, shipping preparations will begin
within the following 2 days and your order will be shipped on the third business day.
Pre-order: Please refer to the product page for detailed shipping times on pre-order items.
No stock: Please refer to the product page for detailed shipping times on out-of-stock items. You can expect to receive your product within 7 to 10 business days when it is shipped from our warehouse in the US.
Please note: Remote areas and islands are excluded from delivery.
Please reach out to our customer service team regarding special requirements or urgent delivery dates and we will endeavour to meet your needs.
Please check our Shipping Policy for additional information regarding delivery locations and costs.
Q2. User Manuals
Please click here to view the X26 User Manual.
Please click here to view the X24 User Manual.
Please click here to view the X20 User Manual.



-
X20
-
X24
-
X26

-
ENGWE X26/X24
-
ENGWE X20





High-Performance Series - Redefine Your Limits
Your next adventure starts here with the ENGWE X Series.
Travel without limitation, wherever the road may take you.
-
Shimano 8-Speed Gear Shifter
Seamless transition with a 160mm disk brake rotor and an IP65 waterproof speed sensor.
-
Indicate Your Next Move
Ride safely and make your movements known on the road. Bright rear indicators keep you out of harm’s way on your journeys.
-
Keeping You Safe & Lighting The Path Ahead
The High-Brightness front LED ensures that the road ahead is well-lit with its impressively long range.
-
Alloy Pedals & CleatsÂ
Durable and stable with anti-skid cleats & wider pedal area (80mm)
-
Aluminum Alloy Fram
Robust and lightweight frame
-
Leather Seat
Comfortable and adjustable seat with a max height range of 25cm.
-
Hydraulic Disc Brakes
A front and rear brake provide powerful stopping power with a maximum braking distance of 12m.
So far extremely happy with the purchase and cutomer service was excellent as well.
I want to say that Engwe might be the best ebike that I can recommend you, bike it's totally perfect and also their services and guarantee is perfect Im happy that I choosed Engwe to buy but actually I search alot to find out which ebike costs to pay almost 2 thousands.
The ENGWE Ebike has been a great buy for me. My kids love it, my eldest son uses it to ride to school instead of driving.
Building the bike from parts wasn’t as difficult as other people say. My only concern for this bike is how easy it would be to steal, no key like other ebikes I’ve seen. One thing I regret no doing is not buying the X26. I already have over 200 miles on it still works fine.
We purchased our back in August and it's been a joy to ride ever since! No longer am I passed up by others on their electric or traditional bikes and I haven't found a route, trail or bike path this bike cannot conquer! We bought the X26 and I am constantly getting comments about how impressive the bike looks! I'd rather ride it to work than drive and there's a lot less congestion. We had no problems with setup or assembly and added mirrors for safety purposes. I've been able to get it up to 40 MPH and have had no complaints!
After unboxing and assembling the x26 I'm rather pleased overall there's several tweaks that still need to be done and fine-tuning that needs to be done with almost any bicycle when you first get it generally speaking I'm quite satisfied with the quality the battery seems to last a very long time as well 92% was as far as I could drain it in almost 40 miles.
The ride is smooth with the suspension provided in the accessories that are sold for the bike work well with the bike.
When you looked at other bicycles on the market in the price range this is a steal of a deal and well worth the money I'll update my review after I put more miles on the bicycle. For now it's two thumbs up good job Engwe.
